Tech Specs
Overview

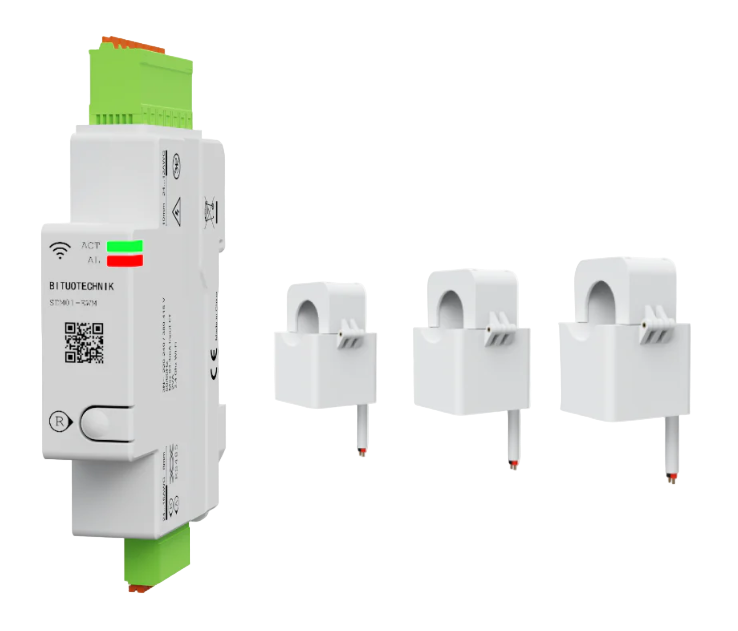

The SDM01 is a professional three-phase energy monitor designed for precise real-time measurement of energy consumption and production. The device is mounted on a DIN rail and comes with split-core current transformers, making installation easy without disconnecting cables.
When and where to use it?
Suitable for monitoring energy flows in homes, commercial buildings, or solar power plants, as well as for “zero export” control.
Key features – why choose it?
-
Bidirectional measurement: Records both consumed energy and energy fed back into the grid.
-
Broad compatibility: Depending on the model, supports Wi-Fi, Zigbee, or Modbus communication.
-
Compact design: Occupies only 18 mm (1 module) in the electrical panel.
-
Accuracy: Complies with IEC 61557-12 standard (class 1 for energy).
Technical specifications
-
Nominal voltage: 3×230/400 V AC
-
Current measurement: 80 A / 120 A / 200 A (with CTs)
-
Accuracy class: Energy – class 1; Voltage – class 0.5
-
Mounting: DIN rail (35 mm)
-
Communication modules: Optional: Wi-Fi, Zigbee, Modbus
-
Protection rating: IP20
Notes
Installation must be performed by a qualified electrician. For additional information, email: info@iglutech.eu
